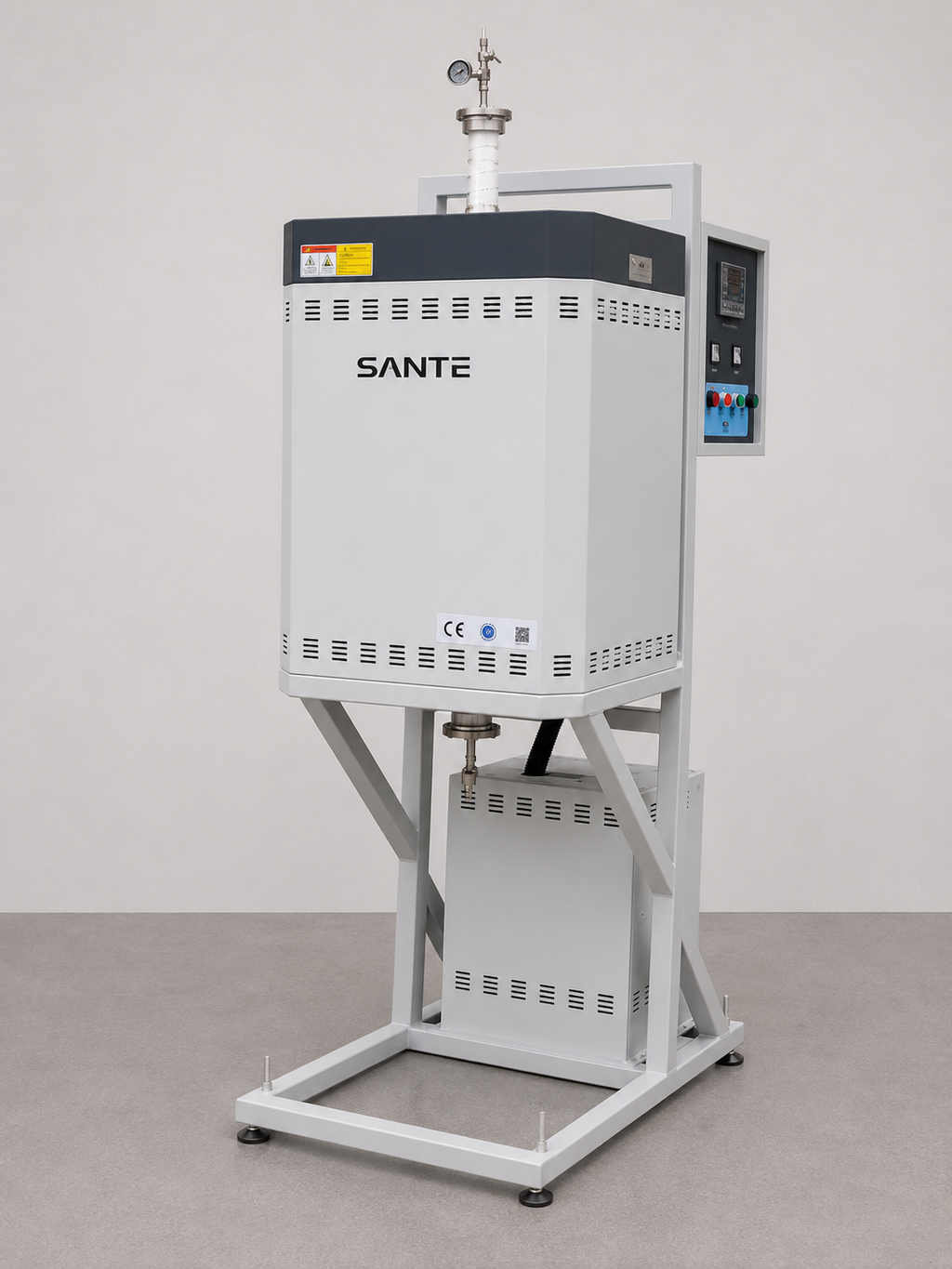

1700°C Vertical Tube Furnace

Main features:

Vertical tube furnace is mainly used in metallurgy, glass, heat treatment,
lithium battery positive and negative electrode materials. It is a certain
atmosphere professional equipment to test material features in new
energy, abrasive tools and other industries.

Advantages:

• Vertical tube furnace has a small footprint and can be used for rapid
  heating / quenching processes.
• High temperature and high vacuum vertical tube furnace with crucible or
  heating materials suspended in the tube can be rotated under vacuum
  for uniform sintering, and the crucible can be manually lifted to easily
  replace the sample.
• Mature technology, Simple furnace structure, Easy to operate, easy to
  control, and continuous production.

How to operate a vertical tube furnace:

• According to the requirements of the laboratory, intermittent manual way
  is used for loading and unloading samples.
• When loading the material, place the material box on the material bowl
  support, open and take out the sealed end cover of the furnace tube,
  put it into the material box support with the material box, install the
  sealed end cover on the furnace tube flange and tighten the clamp bolt.
• Then the process atmosphere is introduced until the oxygen content in
  the furnace tube reaches the process requirements and the temperature
  for sintering.
• After the product sintering process is completed, a small amount of
  process atmosphere should be introduced and the temperature should
  be reduced until the furnace temperature is lower than the process
  requirements, and then the sealed end cover of the furnace tube can be
  opened to take out the heated product.
